Power Conditioner
|
PLIXIR Power Conditioner ELITE for perfect power supply. The PLiXiR BAC is designed and built with our PureTone sound quality concept in mind. As such, the BAC does not employ any protection circuits detrimental to sound quality, like surge Based on the best balanced power transformer made to our exact design and specifications, it will provide you with years of trouble free operation if you use them within their operating specifications. Once the BAC is powered on, you can always leave it on. On its own, its power consumption is less To achieve true balanced transformer winding, PLIXIR partner with premier transformer-maker Noratel to custom-produce our balanced transformers based on their cutting-edge XQ eXtra Quiet noise attenuation technology. |
 |
Selection of PLiXiR BAC:
For optimal audio transient and dynamics performance it is important to over-rate your actual power usage by at least 50% (x1.5). Very often, 100% (x2) is better.
This is particularly important for power amplifiers. For example, if your system’s total system power maximum (source + power amplifier) is 1000W (from the user manual of your equipment), the minimum supply should be 1500W.
PLIXIR Elite BAC 150
Application:
- Desk-fi setup including a DAC, head amplifier and a pair of small sized active speakers (example ADAM’s Artist 3).
- hi-fi source equipment: Pre-Amp, DAC, Transport, CD/BD Player, media server, turntable etc.
- Mac mini style media server PC/Laptop together with your audio equipment.
- hi-fi system power conditioner for stereo amplifier system not more than 20W Class A or 50W Class AB per channel, along with the CD Player/ Preamp/DAC
Specification
- Number of outputs: 2
- Input 220~240 Vac to output 220~240 Vac balanced 50hz
- No load idle power consumption: less than 5W
- Casing finish: Black anodized
- Power Output: 150W Max
- Weight: 4.5kg
- Dimensions (in mm): 230 x 160 x 70#
Price 699,- €
{gallery}plixir/bac-150{/gallery}
PLIXIR Elite BAC 400
Application:
- Desk-fi setup including a DAC, head amplifier and a pair of small sized active speakers (example ADAM’s Artist 3).
- hi-fi source equipment: Pre-Amp, DAC, Transport, CD/BD Player, media server, turntable etc).
- Mac mini style media server PC/Laptop together with your audio equipment.
- hi-fi system power conditioner for stereo amplifier system not more than 20W Class A or 50W Class AB per channel, along with the CD Player/ Preamp/DAC
Specification
- Number of outputs: 4
- Input 220~240 Vac to output 220~240 Vac balanced 50hz
- No load idle power consumption: less than 5W
- Casing finish: Black anodized
- Power Output: 400W Max
- Weight: 8.6kg
- Dimension (WxDxH in mm) : 230 x 160 x 130
Price 1299,- €
{gallery}plixir/bac-400{/gallery}

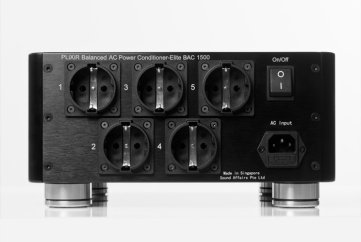

PLIXIR Elite BAC 1500
Application:
- Desk-fi setup including a DAC, head amplifier and a pair of small sized active speakers (example ADAM’s Artist 3).
- hi-fi source equipment: Pre-Amp, DAC, Transport, CD/BD Player, media server, turntable etc.
- Mac mini style media server PC/Laptop together with your audio equipment.
- hi-fi system power conditioner for stereo amplifier system not more than 20W Class A or 50W Class AB per channel, along with the CD Player/ Preamp/DAC
Specification
- Number of outputs: 6
- Two voltage variants: Input 100~120 Vac to output 100~120 Vac balanced 60hz Input 220~240 Vac to output 220~240 Vac balanced 50hz
- No load idle power consumption: less than 5W
- Casing finish: Black anodized
- Power Output: 150W Max
- Weight: 24kg
- Dimensions (in mm): 288 x 285 x 142
Price 3199,- €
Price incl. VAT, plus shipping costs
{gallery}plixir/bac-1500{/gallery}
PLIXIR Elite BAC 3000 - 3000V
Anwendung:
- Vollverstärker und Vorverstärker mit weniger als 240W Class A oder 600W Class AB pro Kanal an 4 Ohm, zusammen mit CD-Player, DAC etc.
- Kleingeräte: DAC, Kopfhörerverstärker, Phonoverstärker und kleine Aktivlautsprecher
- Quellgeräte: CD-Player, Media-Server, Plattenspieler etc.
- Mac mini Media server PC/Laptop zusammen mit Audio Equipment
|
Spezifikation:
|
|
Das dazu passendes Netzkabel bPower finden Sie hier
Elite BAC 3000 (horizontal) Preis 5399,- € (siehe letztes Foto)
Elite BAC 3000V (vertikal) Preis 6199,- €
Preis inkl. MwSt., zzgl. Versand
Bei Interesse kontaktieren sie uns: info@bfly-audio.de
{gallery}plixir/bac-3000v{/gallery}
PLIXIR Elite BAC 1000
Anwendung:
- Vollverstärker und Vorverstärker mit weniger als 50W Class A oder 150W Class AB pro Kanal, zusammen mit CD-Player, DAC etc.
- Kleingeräte: DAC, Kopfhörerverstärker, Phonoverstärker und kleine Aktivlautsprecher
- Quellgeräte: CD-Player, Media-Server, Plattenspieler etc.
- Mac mini Media server PC/Laptop zusammen mit Audio Equipment
Spezifikation:
|
|
Das dazu passendes Netzkabel bPower finden Sie hier
{gallery}plixir/bac-1000{/gallery}
